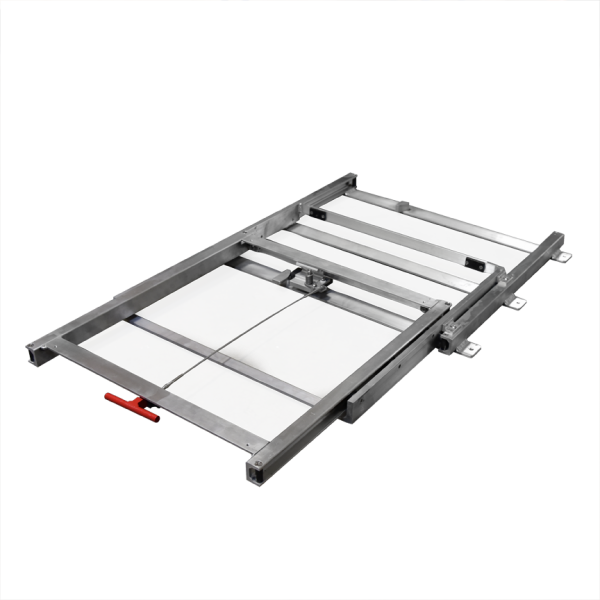

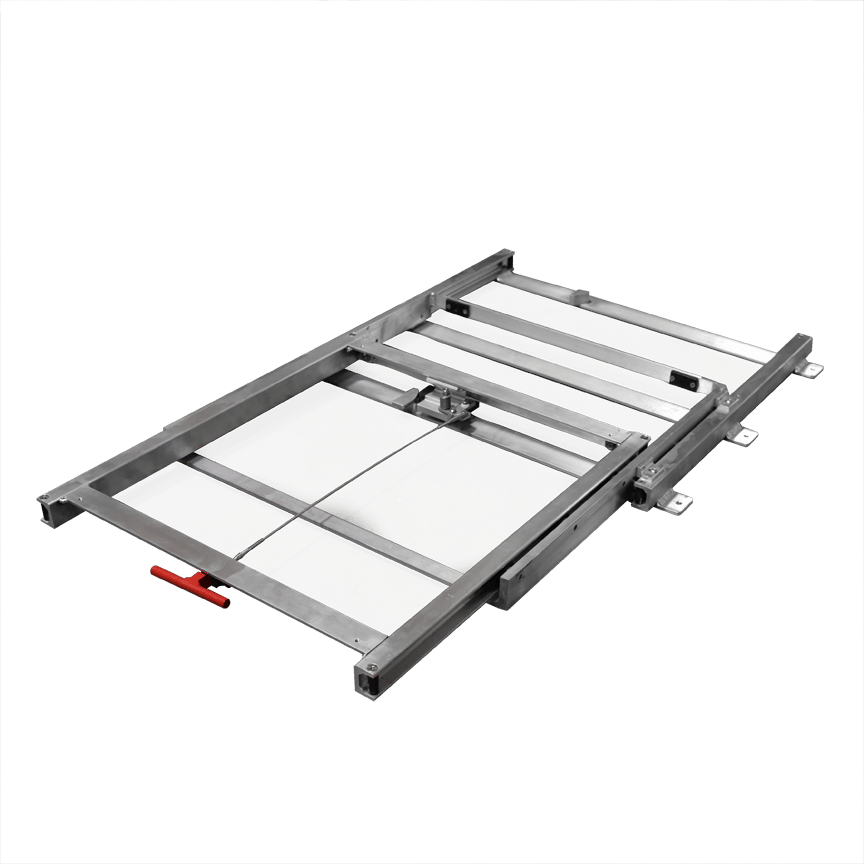

86 Series
Non-Anodized Cargo Slide
Download Engineering Drawing
CUSTOMIZE YOUR CARGO SLIDE:
Secure Checkout:
BRANDS WHO TRUST onscene solutions cargo slides >
PRODUCT DETAILS
SPECIFICATIONS
✔ For single-direction, full-extension applications
✔ 16-30″ depth
✔ 100% extension
✔ Up to 600-lb. weight rating!
DESIGN DIFFERENCES
✔ Corrosion-resistant, anodized-aluminum construction
✔ Easy-access release handle designed for gloved hands
✔ Lighter than comparable steel slides
✔ Urethane (not metal!) wheels provide smooth glide
WARRANTY
✔ A LIFETIME limited warranty!
SHIPPING
✔ Shipping not included; costs will be billed separately.
AVAILABLE SIZES
| Length Range | 16", 17", 18", 19", 20", 21", 22", 23", 24", 25", 26", 27", 28", 29", 30" |
|---|---|
| Width Range | 15"-20", 20.25"-30" |
