84 Series
Out-and-Down Cargo Slide

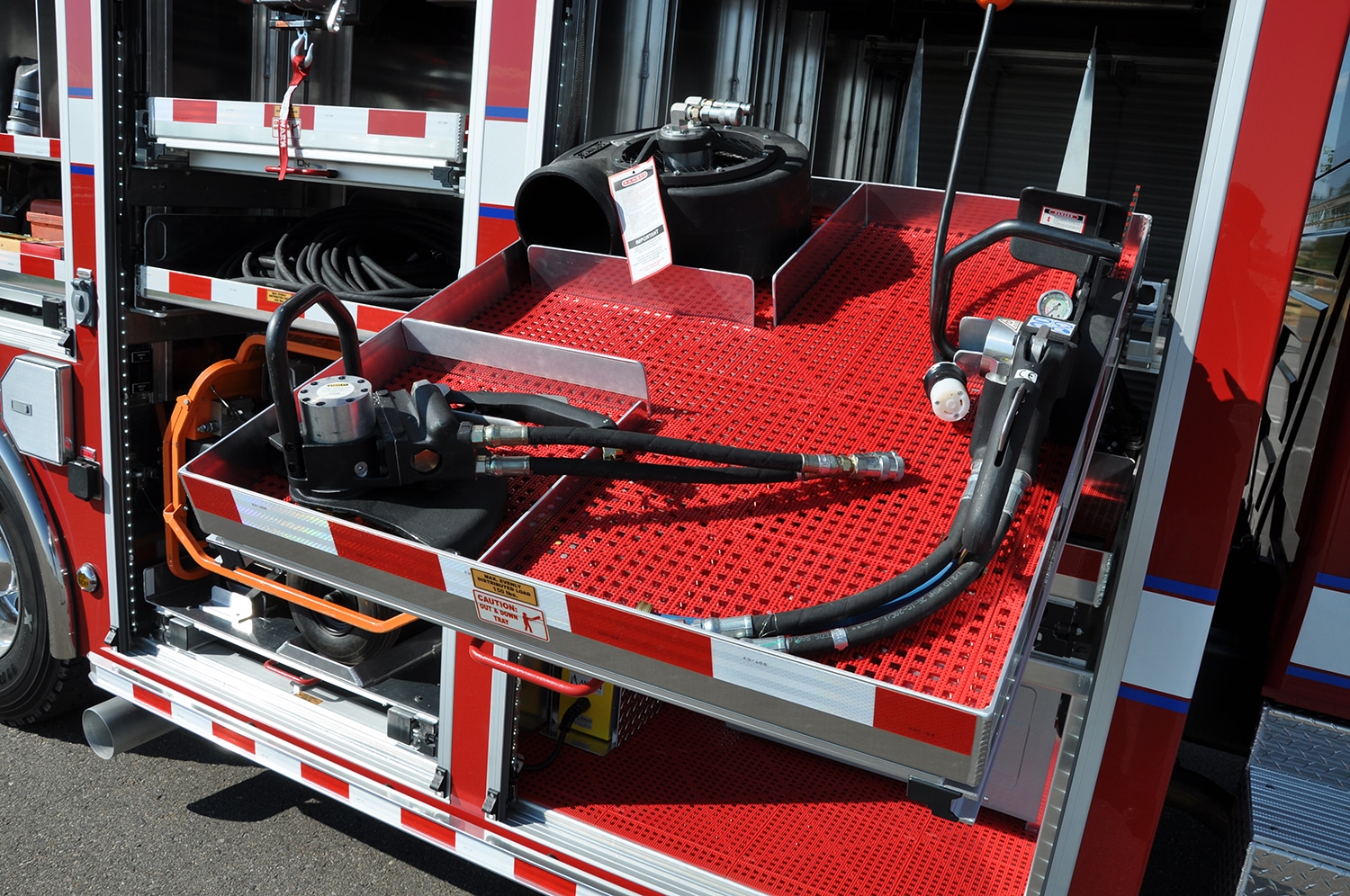

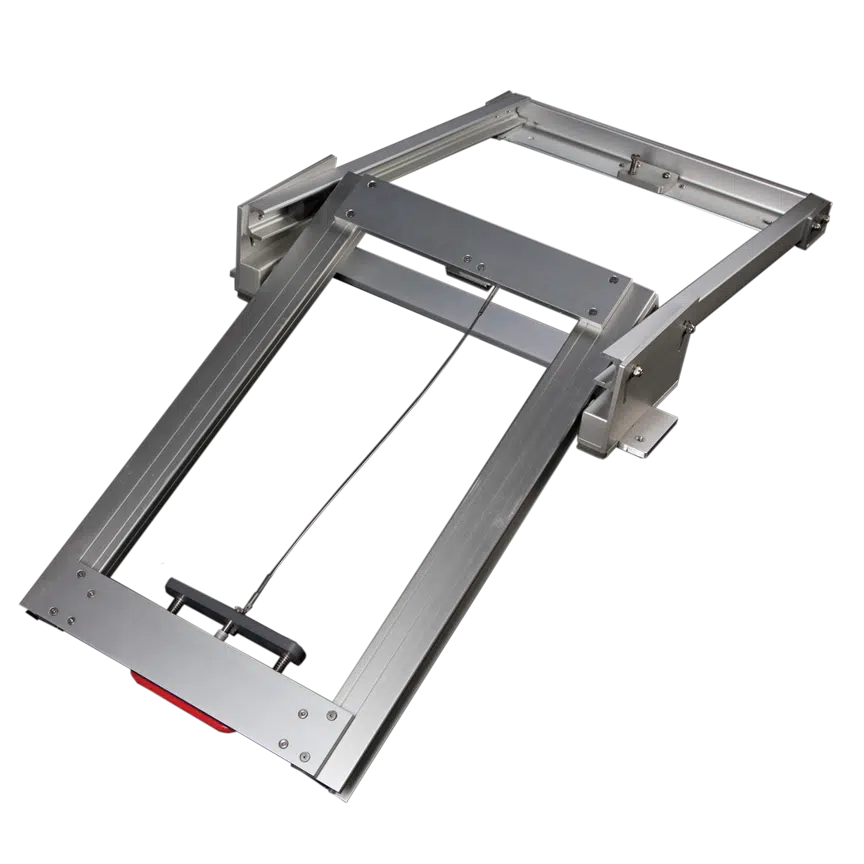

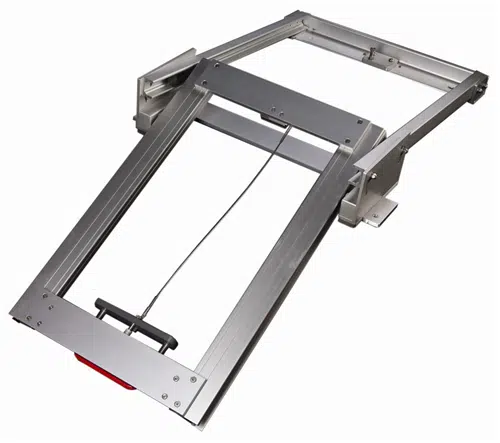

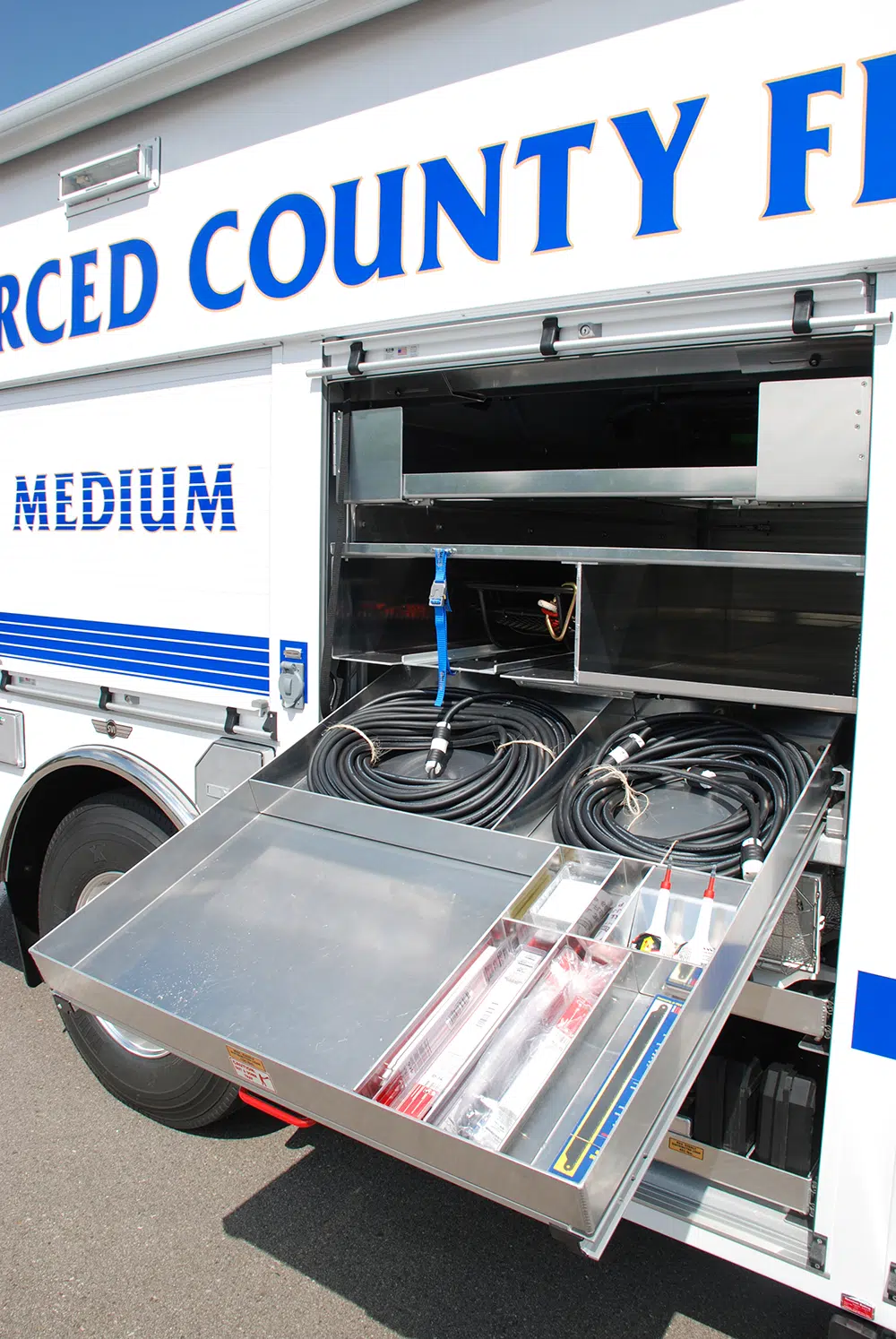

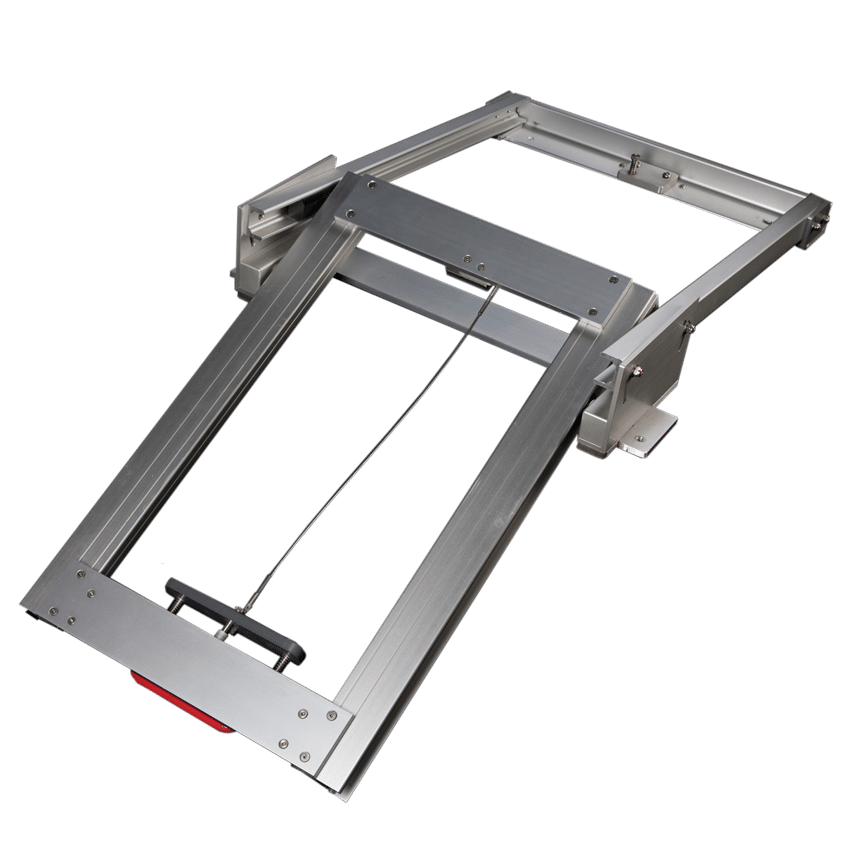

The 84 Series Cargo Slides feature a tilt tray design for easy access to high storage areas, often over wheel wells. These slides offer a 30-degree tilt angle, 250 lbs. of capacity and are built from anodized aluminum and stainless steel for superior corrosion resistance. Shipping costs not included; shipping costs will be billed separately.
Download Engineering Drawing
CUSTOMIZE YOUR CARGO SLIDE:
Secure Checkout:
BRANDS WHO TRUST onscene solutions cargo slides >
PRODUCT DETAILS
SPECIFICATIONS
✔ 100% extension
✔ 13-60″ depth
✔ Sizing up to 60″ long and 70″ wide
✔ Up to 250-lb. weight rating!
✔ Out-and-down cargo slides for those hard-to-reach areas
DESIGN DIFFERENCES
✔ Corrosion-resistant, anodized-aluminum construction
✔ Easy-access release handle designed for gloved hands
✔ Lighter than comparable steel slides
✔ Urethane (not metal!) wheels provide smooth glide
WARRANTY
✔ A LIFETIME limited warranty!
SHIPPING
✔ Shipping not included; costs will be billed separately.
AVAILABLE SIZES
| Length Range | 13"-24", 26"-36", 38"-48", 50"-60" |
|---|---|
| Width Range | 17"-30", 31"-40", 41"-50", 51"-60", 61"-70" |
| Mount Type | External Mount, Internal Mount |
