87 Series
Transverse Tool Board
Download External Mount Engineering Drawing
Download Internal Mount Engineering Drawing
CUSTOMIZE YOUR CARGO SLIDE:
Secure Checkout:
BRANDS WHO TRUST onscene solutions cargo slides >
PRODUCT DETAILS
SPECIFICATIONS

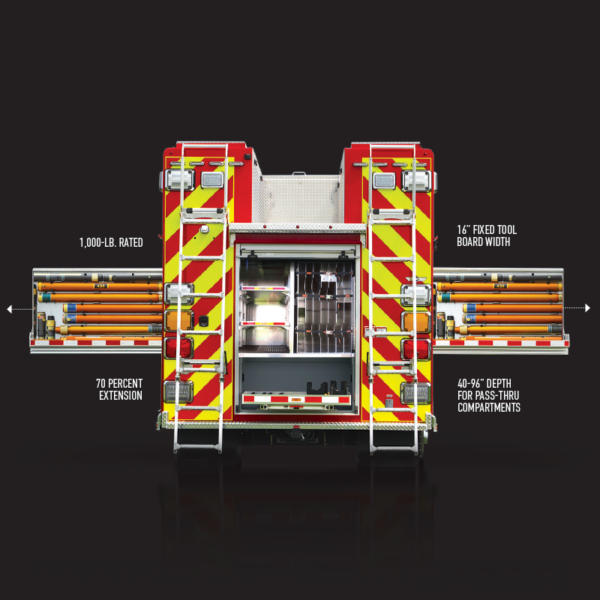

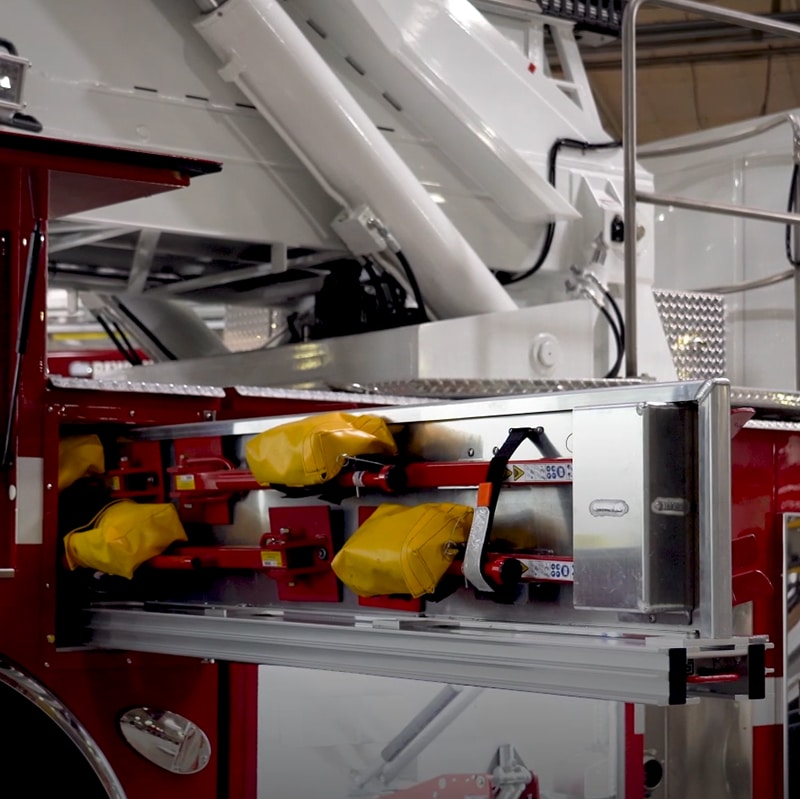

✔ For transverse tool board applications
✔ 70% extension
✔ Up to 1,000-lb. weight rating!
✔ 40” to 96” deep pass-thru compartments.
✔ Two mounting options: 13″ Internal Mount or a 16″ External Mount. Please specify when ordering.
DESIGN DIFFERENCES

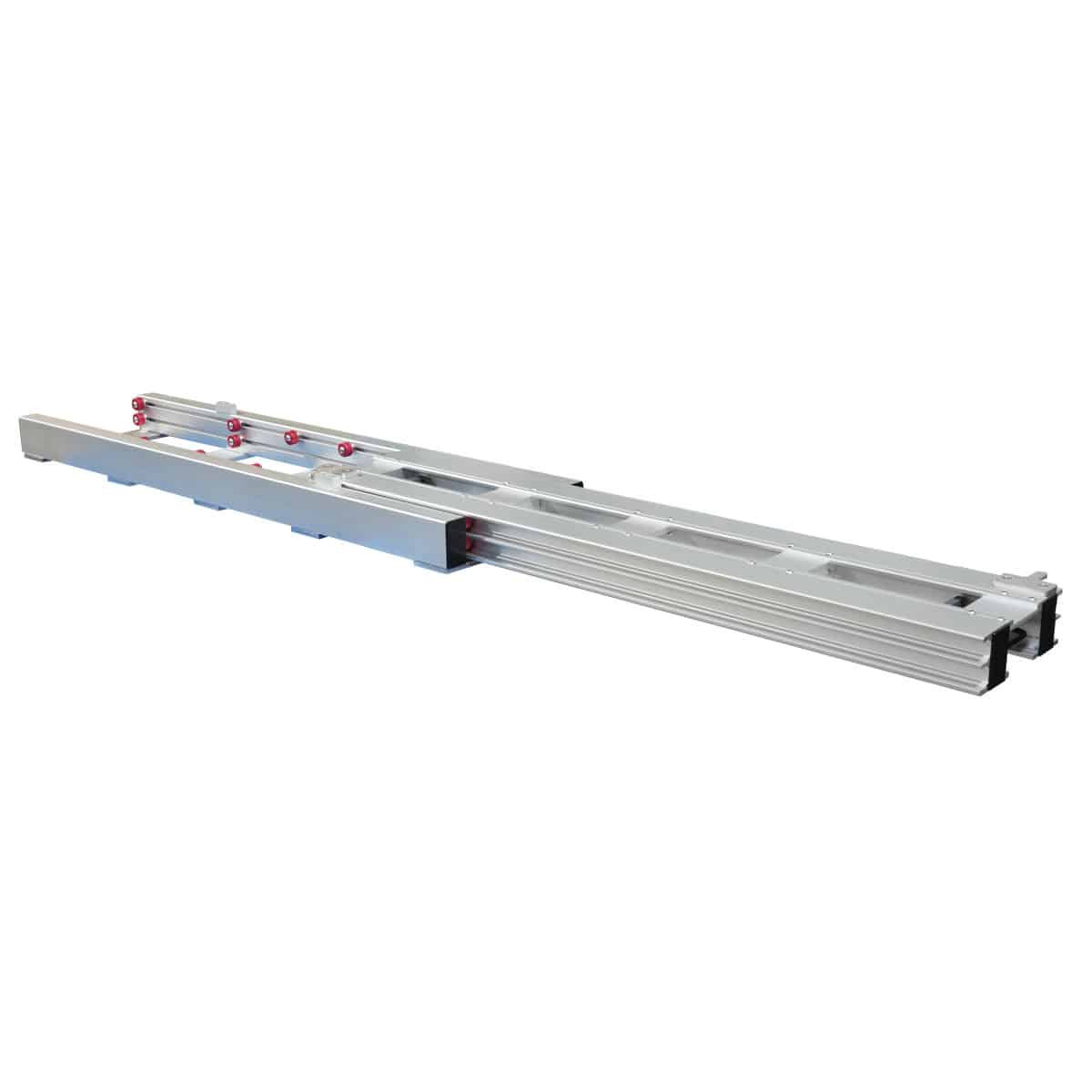

✔ Corrosion-resistant, anodized-aluminum construction

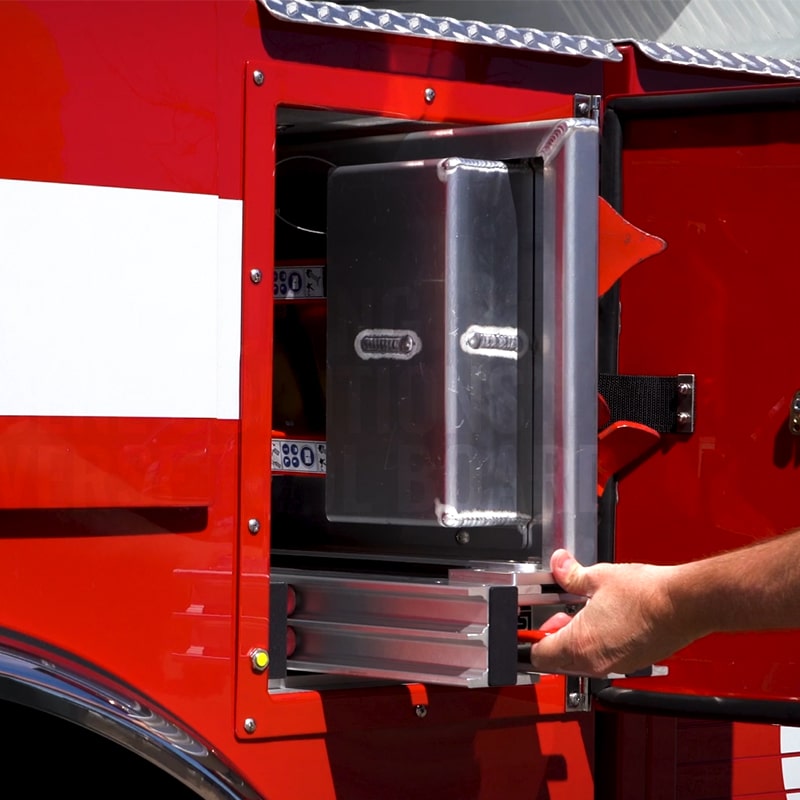

✔ Easy-access release handle designed for gloved hands
✔ Lighter than comparable steel slides
✔ Urethane (not metal!) wheels provide smooth glide
WARRANTY

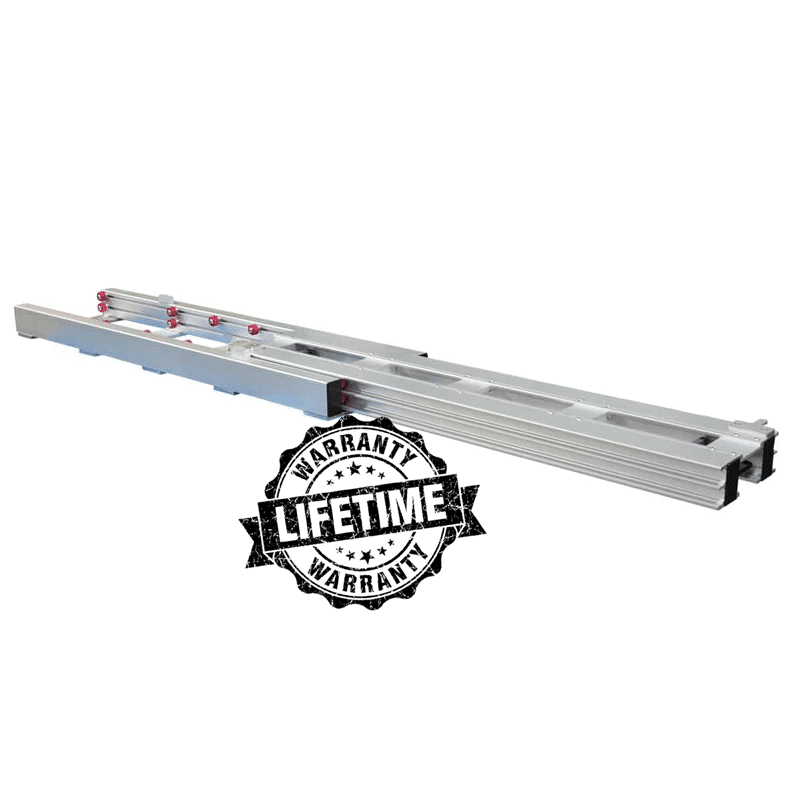

✔ A LIFETIME limited warranty!
SHIPPING
✔ Shipping not included; costs will be billed separately.
AVAILABLE SIZES
| Length Range | 40" to 48", 48" to 60", 60" to 72", 72" to 84", 84" to 96" |
|---|
