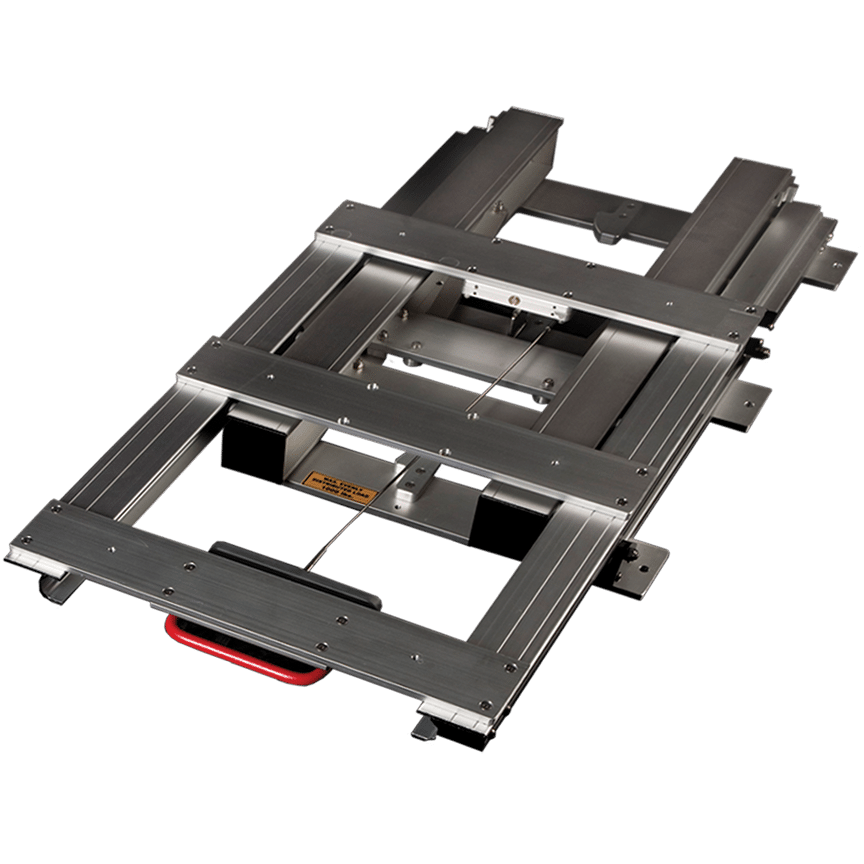

81 Series
3-Rail, Single-Direction
Download Engineering Drawing
CUSTOMIZE YOUR CARGO SLIDE:
Secure Checkout:
BRANDS WHO TRUST onscene solutions cargo slides >
PRODUCT DETAILS
SPECIFICATIONS
✔ For single-direction, full-extension applications
✔ 20-120″ depth
✔ 100% extension
✔ Up to 1,000-lb. weight rating!
DESIGN DIFFERENCES
✔ Corrosion-resistant, anodized-aluminum construction
✔ Easy-access release handle designed for gloved hands
✔ Lighter than comparable steel slides
✔ Urethane (not metal!) wheels provide smooth glide
WARRANTY
✔ A LIFETIME limited warranty!
SHIPPING
✔ Shipping not included; costs will be billed separately.

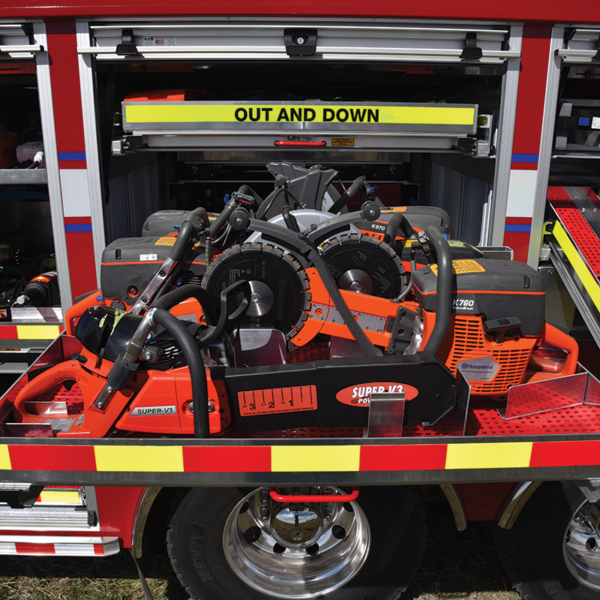

HEAVY-DUTY APPLICATIONS
AVAILABLE SIZES
| Length Range | 20"-24", 25"-36", 37"-48", 49"-60", 61"-72", 73"-84", 85"-96", 97"-108", 109"-120" |
|---|---|
| Width Range | 21"-30", 31"-40", 41"-50", 51"-60" |
819 series
2-rail step
The 819 three-rail slide mounts under the truck body and supports 500 lbs. when extended. The greasable latch combats road and ground debris. Makes the perfect sliding step!
81 series
3-rail single
This single-direction slide extends up to 100% of its full length for easy cargo access, while the three-rail design delivers extreme 1,000-lb. cargo carrying capacity.

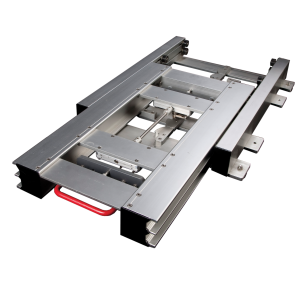

82 series
2-rail single
Without sacrificing weight capacity, this 70% extension two-rail slide features a low-profile design perfect for compartments with lower ceiling heights. Rated for 1,000 lbs.
83 series
transverse
These dual-direction transverse slides are a must-have for pass-through compartments, featuring up to 1,000 lbs. of capacity and 70% extension.
84 series
out-and-down
cargo slide
For easy access to high areas, look to the 84 Series' slide-out / tilt-down design that delivers a 30-degree access angle and up to 250 lbs. of capacity for above-wheel storage.
85 series
slim-design
Tool board
A clone of the 81 Series but in a narrow 11.375" design, the 85 Series cargo slide accommodates tall, slim compartments, as well as vertical tool board applications.
86 series
non-anodized
cargo slide
This welded, NON-anodized aluminum slide provides an economical cargo system. The ultra-low profile design (at 2.75") is perfect for lower compartments.
87 series
transverse
tool board
This 1,000.-lb. rated transverse tool board features 70 percent extension for 40”- to 96”-deep pass-thru compartments. Accommodates a 13"- or a 16"-fixed tool board width.
